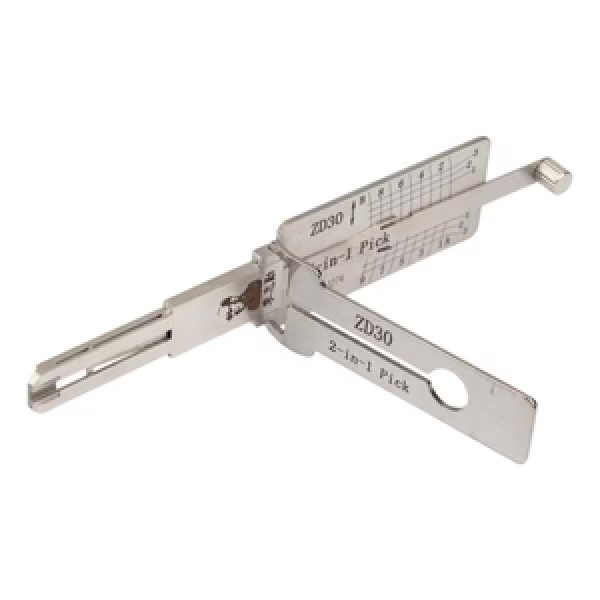

🔑 Original Lishi 2-In-1 Pick and Decoder ZD30 (ZD30-AG) — Motorcycle Ignition Tool
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 PRODUCT DESCRIPTION
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The Original Lishi 2-In-1 Pick and Decoder ZD30 is a factory-original Lishi
tool designed specifically for motorcycle ignition locks using the ZD30 / ZD30-AG
keyway. Unlike a decoder-only tool, the 2-in-1 design combines a tension pick
and a bit-reading decoder in a single stainless steel instrument — letting
locksmiths both open the lock and originate a new key in one smooth workflow.
Built for Aprilia, Ducati, and Moto Guzzi ignition applications, this is the
go-to tool for the European sportbike and adventure-bike market.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙️ TECHNICAL SPECIFICATIONS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔖 Brand: Lishi (Original / Genuine)
🔖 SKU: Lishi-T072
🔖 Keyway: ZD30 / ZD30-AG
🔖 Type: 2-In-1 Pick and Decoder (combined function)
⚙️ Material: Stainless Steel
⚙️ Depths: 1–3
⚙️ Tool Spaces: 1–9
🔘 Function: Pick ignition + decode bitting in one tool
🏭 Application: Motorcycle ignition locks (European sportbike / adventure)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🚗 COMPATIBILITY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Aprilia: RSV 1000 R (2004–2010), Tuono (2004–2010)
✅ Ducati: Streetfighter (2009–2014)
✅ Moto Guzzi: Stelvio (2008–2016)
⚠️ Always verify your ignition keyway is ZD30 / ZD30-AG before ordering — the
ZD30 keyway is specific to these European motorcycle applications.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔧 PROGRAMMING
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠️ No programming required — this is a mechanical pick + decoder tool, not an electronic device.
📖 How to use: Insert the 2-in-1 tool into the motorcycle ignition, apply light
tension with the pick end to release the wafer stack, then read the bit
depths (1–3) across the 9 tool spaces. Translate the readings to a cuts
code, then cut a new key blank (HPC / Silca motorcycle code series or
equivalent) on a precision key-cutting machine.
🏭 Recommended: Use a quality code-cutting machine such as HPC CodeMax,
Silca Quattroplus, or Advanced Diagnostics MXP — paired with a ZD30
compatible motorcycle key blank.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📋 INCLUDED
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
• 1 × Original Lishi 2-In-1 Pick and Decoder ZD30
• 1 × Protective vinyl carrying pouch
• 1 × Lishi application reference card
• 1 × Inspection / authenticity card
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🚚 SHIPPING & WARRANTY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 Secure packaging in protective case to prevent shipping damage
📅 Ships within 1–2 business days from US warehouse
🚚 Free standard shipping on orders over $99
🛡️ 1-year manufacturer warranty against defects in materials and workmanship
🛡️ 30-day return window for unused / unopened items
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
❓ FREQUENTLY ASKED QUESTIONS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Q1: Is this an original Lishi tool or a knockoff?
A: ✅ This is a 100% genuine Original Lishi 2-in-1 tool, sourced directly
from authorized Lishi distributors. Every unit ships with an authenticity
card and Lishi serial marking.
Q2: Which motorcycles does the ZD30 (ZD30-AG) tool work on?
A: ✅ The Lishi-T072 is designed for Aprilia RSV 1000 R, Aprilia Tuono,
Ducati Streetfighter, and Moto Guzzi Stelvio ignition locks. Always
verify your keyway is ZD30 / ZD30-AG before ordering.
Q3: What is the difference between a 2-in-1 tool and a decoder-only tool?
A: ✅ A 2-in-1 tool combines a tension pick and a decoder in one instrument,
letting you both open the lock and read the bitting. A decoder-only tool
requires the lock to already be open. For motorcycle ignitions where you
are working without a working key, the 2-in-1 is usually the better
choice.
Q4: Do I need a working key to use this tool?
A: ✅ No. The 2-in-1 design lets you pick the ignition open first, then
decode the bitting from inside the lock — no working key required.
Q5: Does this work on car ignitions (automotive)?
A: ❌ No. The ZD30 keyway is specific to certain European motorcycles. For
automotive (car) applications, you need a different Lishi tool matched
to your vehicle's keyway (e.g., CY24 for Chrysler / Dodge / Jeep,
HU101 for Ford, TOY48 for Toyota).
Q6: How long does it take to pick and decode a ZD30 ignition?
A: ⚠️ For an experienced Lishi user, typically 2–5 minutes per lock. If you
are new to Lishi tools, allow 15–30 minutes for your first ZD30 — watch
a few training videos on the official Lishi channel before tackling a
paying customer's bike.
Q7: What machine should I use to cut the new key?
A: ✅ Use any quality code-cutting machine that supports motorcycle key
blanks — HPC CodeMax, Silca Quattroplus, Advanced Diagnostics MXP,
Xhorse Dolphin, or equivalent. Pair with a ZD30-compatible motorcycle
key blank for the best results.
Q8: Is the ZD30-AG keyway the same as ZD30?
A: ✅ Yes — ZD30-AG is the anti-glare (AG) variant of the same ZD30 keyway.
This 2-in-1 tool reads both ZD30 and ZD30-AG ignition locks.
