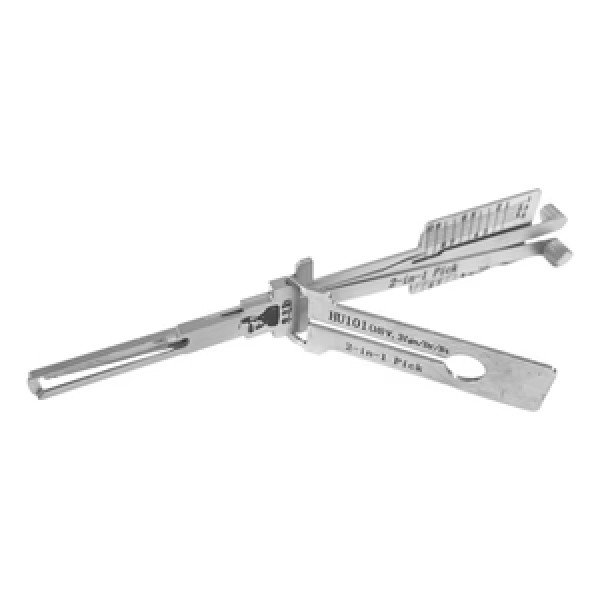

🔑 Original Lishi 2-In-1 Pick and Decoder HU101 V3 Cutout — VW / Audi
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 PRODUCT DESCRIPTION
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The Original Lishi 2-In-1 Pick and Decoder HU101 V3 Cutout is a factory-
original Lishi tool built specifically for Volkswagen and Audi vehicles that
use the HU101 plastic-head keyway. The V3 cutout profile is the key
difference from standard HU101 tools — it includes the geometric cutout
required to read the plastic-head key blade shape used on most modern VW /
Audi vehicles (Golf, Passat, Tiguan, Jetta, Audi A3 / A4 / Q5, etc.). It
combines a tension pick and a bit-reading decoder in a single stainless
steel instrument, eliminating tool swapping in the field.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙️ TECHNICAL SPECIFICATIONS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔖 Brand: Lishi (Original / Genuine)
🔖 SKU: Lishi-T151
🔖 Keyway: HU101
🔖 Profile: V3 Cutout (for plastic-head keys)
🔖 Type: 2-In-1 Pick and Decoder
⚙️ Material: Stainless Steel
🔘 Function: Pick lock + decode bitting in one tool
🏭 Application: VW / Audi plastic-head key door, ignition, and trunk locks
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🚗 COMPATIBILITY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Volkswagen: Golf (Mk6+), GTI, Jetta, Passat, Tiguan, Atlas, Beetle,
CC, EOS, Routan (HU101 plastic-head keyway)
✅ Audi: A3, A4, A5, A6, Q3, Q5, Q7, TT, RS3, S3, S4, S5 (HU101 plastic-head)
✅ Skoda: Octavia, Superb, Kodiaq, Kodiaq, Karoq (shared VAG HU101 platform)
✅ SEAT: Leon, Ibiza, Ateca, Toledo, Alhambra (shared VAG HU101 platform)
⚠️ The V3 cutout profile is REQUIRED for plastic-head HU101 keys. A
standard HU101 tool (no cutout) will bind and not read these keys
correctly. Always verify the cutout profile before ordering.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔧 PROGRAMMING
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠️ No programming required — this is a mechanical pick + decoder tool, not an electronic device.
📖 How to use: Insert the 2-in-1 tool into the lock cylinder, apply light
tension with the pick end to release the wafer stack, then read the bit
depths across the tool spaces. The V3 cutout accommodates the
plastic-head key profile so the tool seats fully into the cylinder.
Translate the readings to a cuts code, then cut a new HU101 plastic-head
key blank on a precision key-cutting machine.
🏭 Recommended: Use HPC CodeMax, Silca Quattroplus, Advanced Diagnostics
MXP, or Xhorse Dolphin code cutter with a HU101 plastic-head VW / Audi
key blank.
⚠️ Most VW / Audi vehicles from 2000+ use immobilizer (immobox) systems
that need to be programmed. After cutting the new key, you will also
need a VW / Audi compatible programmer (Autel IM608, Xhorse Key Tool
Plus, Abrites AVDI, Advanced Diagnostics MVP / T-Code Pro) to add the
new transponder to the vehicle.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📋 INCLUDED
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
• 1 × Original Lishi 2-In-1 Pick and Decoder HU101 V3 Cutout
• 1 × Protective vinyl carrying pouch
• 1 × Lishi application reference card
• 1 × Inspection / authenticity card
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🚚 SHIPPING & WARRANTY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 Secure packaging in protective case
📅 Ships within 1–2 business days from US warehouse
🚚 Free standard shipping on orders over $99
🛡️ 1-year manufacturer warranty against defects
🛡️ 30-day return window for unused / unopened items
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
❓ FREQUENTLY ASKED QUESTIONS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Q1: Is this an original Lishi tool or a knockoff?
A: ✅ 100% genuine Original Lishi 2-in-1, sourced from authorized Lishi
distributors. Ships with authenticity card and Lishi serial marking.
Q2: What does "V3 Cutout" mean?
A: ✅ V3 = the third-generation Lishi profile for HU101 plastic-head keys.
The "Cutout" refers to a geometric notch in the tool body that allows
it to seat fully into the lock cylinder when the key has a plastic
head — which is the case for nearly all modern VW / Audi HU101 keys.
Q3: Which vehicles use the HU101 V3 cutout keyway?
A: ✅ Volkswagen (Golf, GTI, Jetta, Passat, Tiguan, Atlas, Beetle, CC),
Audi (A3, A4, A5, A6, Q3, Q5, Q7, TT, S-line models), and most VAG
platform vehicles (Skoda, SEAT) that use plastic-head HU101 keys
(2008+ on most models).
Q4: Can I use a standard HU101 tool on VW / Audi plastic-head keys?
A: ❌ No. A standard HU101 tool (no V3 cutout) will bind on plastic-head
keys and not read the bitting correctly. The V3 cutout profile is
required for these vehicles.
Q5: Do I need a working key to use this tool?
A: ✅ No. The 2-in-1 design lets you pick the lock open first, then decode
the bitting from inside — no working key required.
Q6: After cutting the new key, do I need to program anything?
A: ⚠️ Yes — most 2000+ VW / Audi vehicles use immobilizer systems. You
will need a separate VW / Audi compatible programmer (Autel IM608,
Xhorse Key Tool Plus, Abrites AVDI, Advanced Diagnostics MVP / T-Code
Pro) to add the new transponder to the vehicle.
Q7: How long does it take to pick a HU101 lock?
A: ⚠️ HU101 locks are high-security (laser-cut, 8 cuts) and require
practice. For an experienced Lishi user, typically 3–8 minutes per
cylinder. New users should allow 30–60 minutes of practice on a
junkyard lock before attempting a paying customer's vehicle.
Q8: Can I use this tool on Ford / Lincoln HU101 vehicles?
A: ⚠️ Ford / Lincoln HU101 vehicles use a different key blank (no plastic
head with the same V3 cutout shape). This V3 tool is designed for VW /
Audi VAG-platform plastic-head keys. For Ford / Lincoln HU101, you
need the standard Lishi HU101 tool (without the V3 cutout) — sold
separately.
